UNDER DEVELOPMENT
This chapter describes the options for the General Settings.

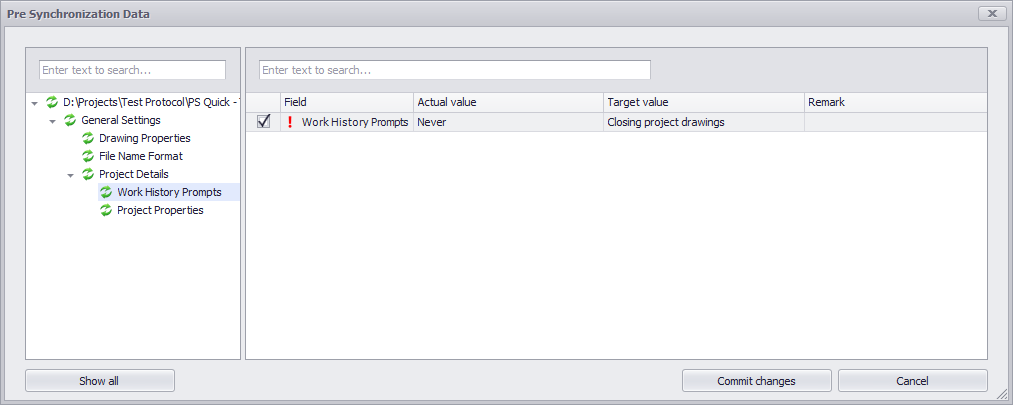

These settings can be found under Project Details. Enabling Synchronize Work history prompt will copy the option to the target projects.
|
General paths and file locations
These settings can be found under Project Details. Enabling Synchronize Related files directory will copy the path to the target projects. The path will be handled as a relative path. Meaning the adapted path in the target project will NOT point to the source project. Enabling Synchronize User-defined reports directory will copy the path to the target projects. The path will be handled as a relative path. Meaning the adapted path in the target project will NOT point to the source project. Remark: Be very cautious with synchronizing the paths, because it may lead to broken links to the files in those directories.
|

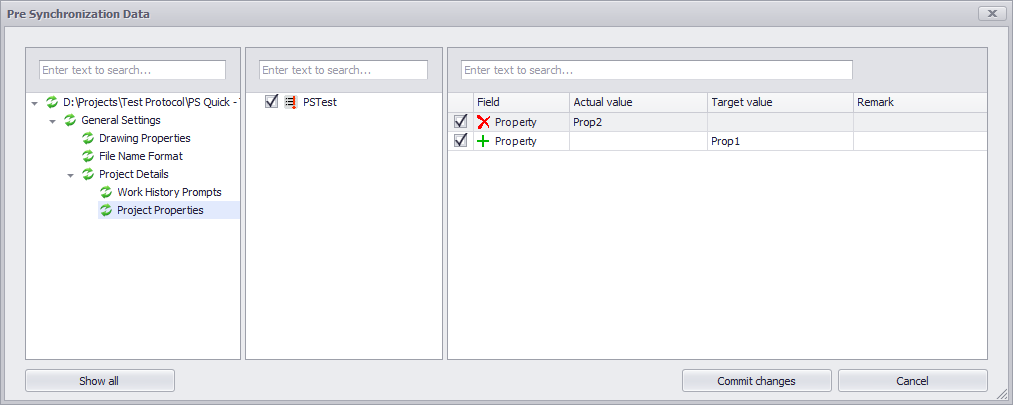

These settings can be found under Project Details. Enabling Add missing project categories and properties will add the categories and properties to the target project if they don't exist in the target project. However, it will NOT copy the project property values to the target project. Enabling Remove project categories and properties not in the source will remove the categories and properties in the target project if the category and property doesn't exist in the source project.
|

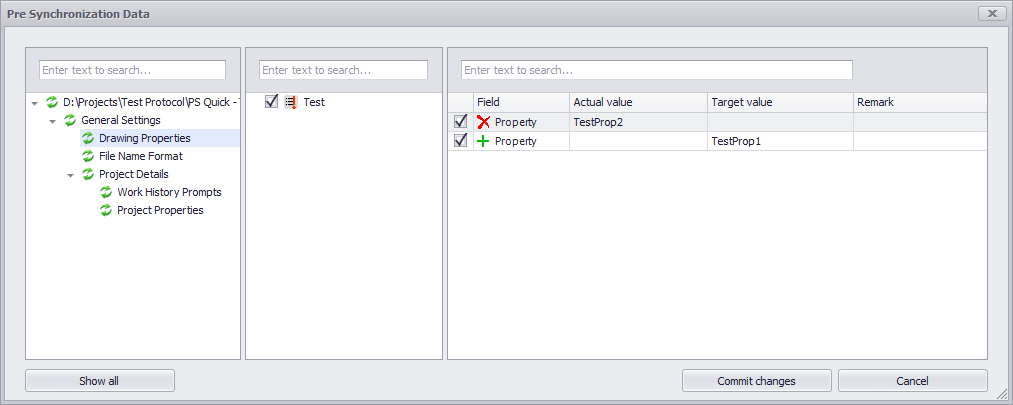

These settings can be found under Drawing Properties. Enabling Add missing drawing categories and properties will add the drawing categories and properties to the target project if they don't exist in the target project. Enabling Remove project categories and properties not in the source will remove the categories and properties in the target project if the category and property doesn't exist in the source project.
|

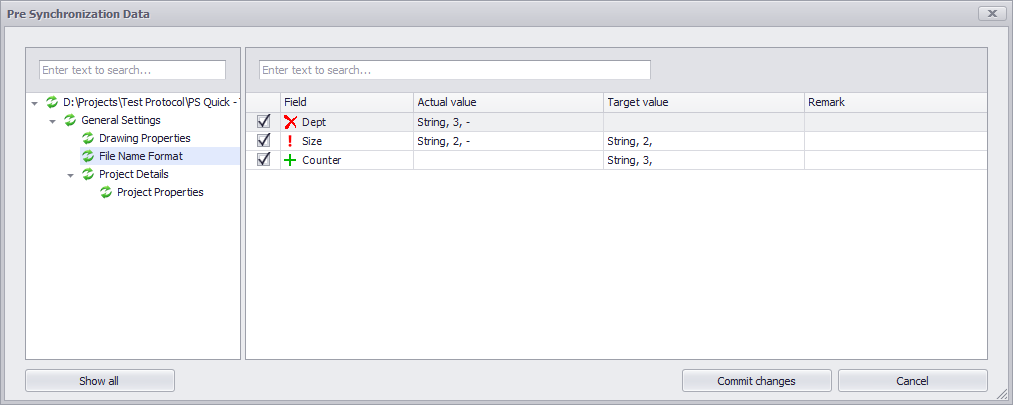

This setting can be found under File Format Name. Enabling Add missing file name format will copy the file name format setup to the target project. Enabling Remove file name format not in the source will remove the file name format in the target project if the file name format doesn't exist in the source project. Enabling Overwrite existing file name format will copy the file name format in the target project of a file name format was setup in the source project.
|
These settings can be found in the Validation Settings dialog which can be opened from Project Manager or the P&ID ribbon Enabling Synchronize will copy the enabled Validations to the target project.
|
