This chapter describes the options for the PlantExpressTools Settings.

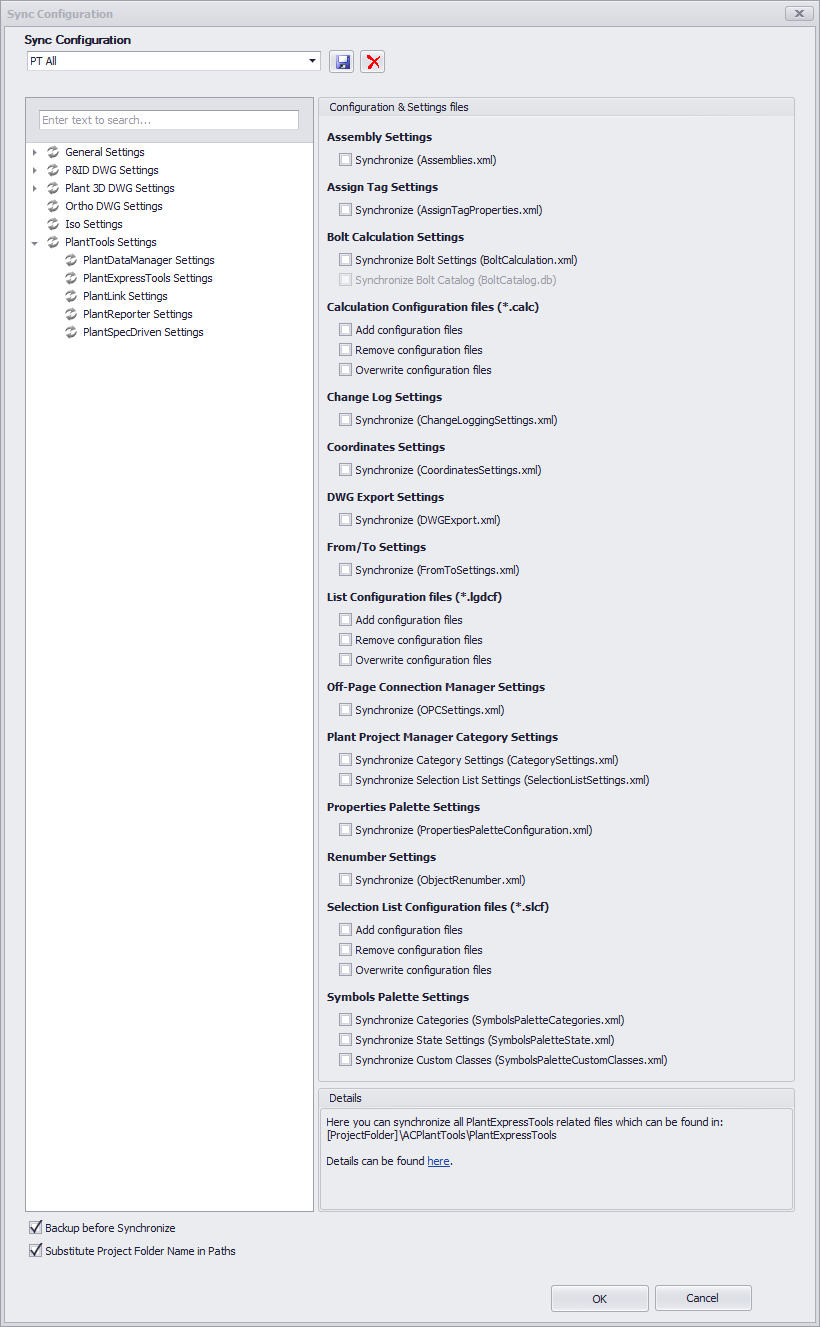

PS Sync Config - 0043

hmtoggle_arrow1        Assembly Settings

Synchronize will overwrite the \ACPlantTools\PlantExpressTools\Assemblies\Assemblies.xml file.


hmtoggle_arrow1        Assign Tag Settings

Synchronize will overwrite the \ACPlantTools\PlantExpressTools\ClassesAndProperties\AssignTagProperties.xml file.


hmtoggle_arrow1        Bolt Calculation Settings

Synchronize Bolt Settings will overwrite the \ACPlantTools\PlantExpressTools\BoltCalculation\BoltCalculation.xml file.

Synchronize Bolt Catalog will overwrite the \ACPlantTools\PlantExpressTools\BoltCalculation\BoltCatalog.db file. The name can differ from the default name.


hmtoggle_arrow1        Calculation Configuration files (*.calc)

Add, Remove and Overwrite will add, remove and overwrite the \ACPlantTools\PlantExpressTools\Calculations\*.calc files. The \ACPlantTools\PlantExpressTools\Calculations\CalculationConfiguration.Collection.xml will be adapted automatically when committing the changes.


hmtoggle_arrow1        Change Log Settings

Synchronize will overwrite the \ACPlantTools\PlantExpressTools\ChangeLogging\ChangeLoggingSettings.xml file.

Remark: This option is currently disabled, because the Change Log function has not been adapted for Collaboration.


hmtoggle_arrow1        Coordinates Settings

Synchronize will overwrite the \ACPlantTools\PlantExpressTools\Coordinates\CoordinatesSettings.xml file.


hmtoggle_arrow1        DWG Export Settings

Synchronize will overwrite the \ACPlantTools\PlantExpressTools\DWGExport\DWGExport.xml file.


hmtoggle_arrow1        From/To Settings

Synchronize will overwrite the \ACPlantTools\PlantExpressTools\FromTo\FromToSettings.xml file.


hmtoggle_arrow1        List Configuration files (*.lgdcf)

Add, Remove and Overwrite will add, remove and overwrite the \ACPlantTools\PlantExpressTools\ListConfigurations\*.lgdcf files. The \ACPlantTools\PlantExpressTools\ListConfigurations\LegendConfiguration.Collection.xml will be adapted automatically when committing the changes.


hmtoggle_arrow1        Off-Page Connection Manager Settings

Synchronize will overwrite the \ACPlantTools\PlantExpressTools\OffPageConnectors\OPCSettings.xml file.


hmtoggle_arrow1        Plant Project Manager Category Settings

Synchronize Category Settings will overwrite the \ACPlantTools\PlantExpressTools\PlantProjectManager\CategorySettings.xml file.

Synchronize Selection List Settings will overwrite the \ACPlantTools\PluginUtils\SelectionListSettings.xml file.


hmtoggle_arrow1        Properties Palette Settings

Synchronize will overwrite the \ACPlantTools\PlantExpressTools\ClassesAndProperties\PropertiesPaletteConfiguration.xml file.


hmtoggle_arrow1        Renumber Settings

Synchronize will overwrite the \ACPlantTools\PlantExpressTools\Renumber\ObjectRenumber.xml file.


hmtoggle_arrow1        Selection List Configuration files (*.slcf)

Add, Remove and Overwrite will add, remove and overwrite the \ACPlantTools\PlantExpressTools\SelectionLists\*.slcf files. The \ACPlantTools\PlantExpressTools\SelectionLists\SelectionListSettings.Collection.xml will be adapted automatically when committing the changes.


hmtoggle_arrow1        Symbols Palette Settings

Synchronize Categories will overwrite the \ACPlantTools\PlantExpressTools\SymbolsPalette\SymbolsPaletteCategories.xml file.

Synchronize State Settings will overwrite the \ACPlantTools\PlantExpressTools\SymbolsPalette\SymbolsPaletteState.xml file.

Synchronize Custom Classes will overwrite the \ACPlantTools\PlantExpressTools\SymbolsPalette\SymbolsPaletteCustomClasses.xml file.
