This chapter describes the options for the PlantSpecDriven Settings.

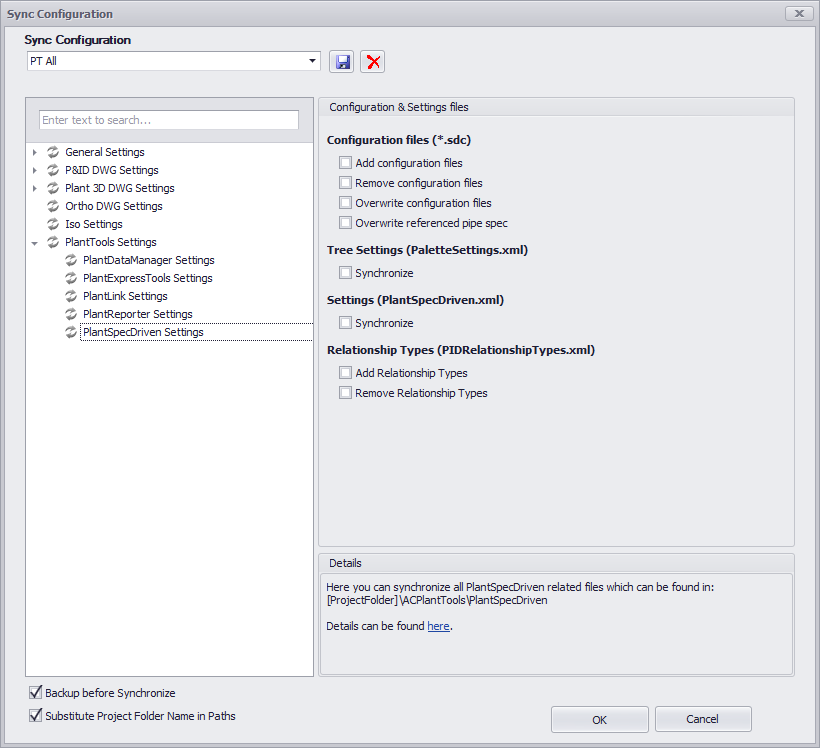

PS Sync Config - 0046

hmtoggle_arrow1        Configuration files (*.sdc)

Add, Remove and Overwrite will add, remove and overwrite the \ACPlantTools\PlantSpecDriven\*.sdc files. The \ACPlantTools\PlantSpecDriven\SpecDrivenLinkConfiguration.Collection.xml will be adapted automatically when committing the changes.

Overwrite referenced pipe spec will overwrite the pipe spec files (pspc, pspx) referenced in the sdc file.


hmtoggle_arrow1        Tree Settings (PaletteSettings.xml)

Synchronize will overwrite the \ACPlantTools\PlantSpecDriven\PaletteSettings.xml file.


hmtoggle_arrow1        Settings (PlantSpecDirven.xml)

Synchronize will overwrite the \ACPlantTools\PlantSpecDriven\PlantSpecDriven.xml file.


hmtoggle_arrow1        Relationship Types (PIDRelationshipTypes.xml)

Add and Remove will add and remove the relationship types defined in the ACPRelationshipTypes in the ProcessPower.dcf (or the PnId database on SQL-Server). The \ACPlantTools\PIDRelationshipTypes.xml will later be updated when closing the target project.
