Coordinates

<< Click to Display Table of Contents >>

Navigation:  PlantExpressTools > Settings >

Coordinates

Previous pageReturn to chapter overviewNext page

This chapter describes the various options of the Coordinates tab of the Settings dialog.

General

The "Coordinates" tab allows you to setup properties and default values for the coordinate function. Details can be found under Define Coordinate System.

PET Settings Coordinates

Drawing Category and Properties

The Coordinate function will work in Paper Space. So all settings here are related to this space and not Model Space.

Category Name:

The Name of the drawing category in Project Setup.

Coordinate Base Point:

Property Name for the Base Point and the Default Value.

Coordinate Grid Distance:

Property Name for the Grid Distance and the Default Value.

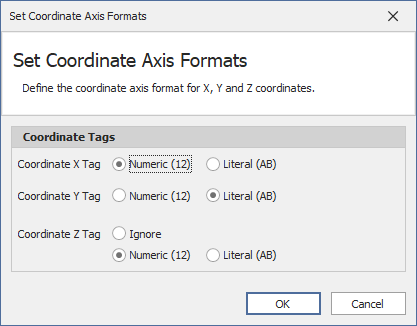

Coordinate Axis Tags:

Property Name for the Axis Tags and the Default Value.

Engineering/Non-Engineering Items Propery

Name:

Name of the property for the Engineering and Non-Engineering Items classes.

Display Name:

Display Name of the property for the Engineering and Non-Engineering Items classes.

Store coordinates in separate properties

This stores X, Y, Z in separate properties and not just one.

Next Chapter: DWG Export
